US12487060 - Cover for tactical armor system

The patent describes a wearable cover for a ballistic vest carrier that features a mantle designed to provide easy access for inserting armor panels while ensuring a secure fit. The innovative design includes a split inner liner that allows the sides to be pulled upward and outward, facilitating convenient loading of the ballistic vest components.

Claim 1

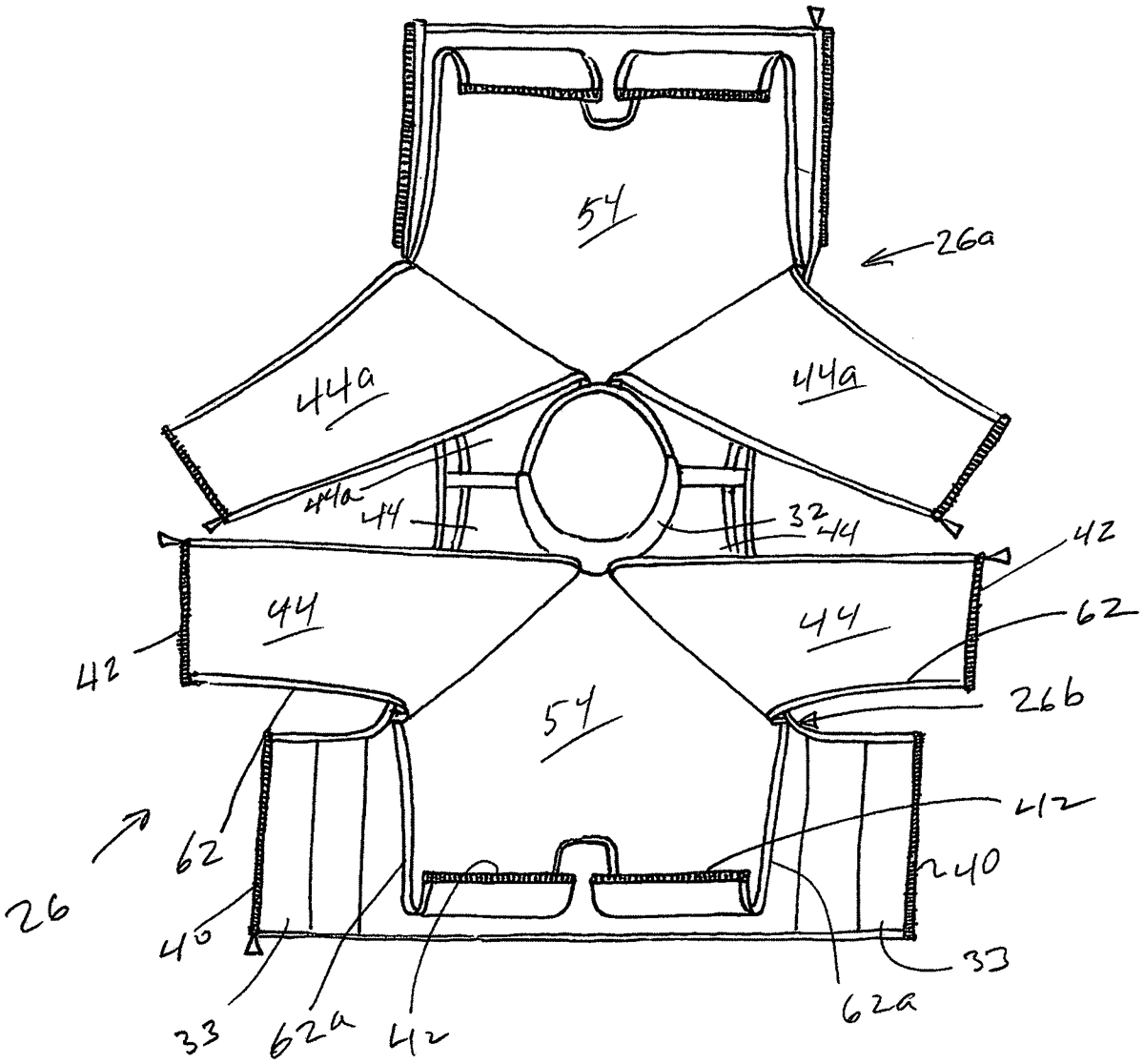

1 . A wearable cover for a ballistic vest carrier, the carrier including a front armor panel and a rear armor panel, attachable waist straps to attach the front armor panel to the rear armor panel, and attachable shoulder straps for attaching the front panel of the carrier to the rear panel of the carrier at shoulders of the wearer, prior to donning the cover, the cover comprising: a mantle configured to extend from front to rear over shoulders of the wearer, at approximately waist level at front and rear and having a head/neck opening, front and back sides and left and right sides, with recesses in the left and right sides to define arm openings when the mantle is worn, the mantle having an outer fabric layer at front and back, and an inner liner attached to the outer fabric layer at sides, at shoulder areas and at the head/neck opening of the mantle, and an additional liner positioned between the outer fabric layer and the inner liner, secured to the inner liner so as to produce a sling with the inner liner to receive and support portions of the ballistic vest carrier at front and back, the outer fabric layer being detached from the inner liner at bottom edges of the front and back of the mantle, the sling being openable and closable at or near a bottom of the sling for insertion of the ballistic vest carrier portions; wherein the inner liner at both the front and back of the mantle is split along a vertical center line and along the bottom edge, and includes releasable attachment means along the bottom edge, such that for insertion of a portion of the ballistic vest carrier, the two sides of the liner can be pulled upwardly and outwardly for easy access to load the ballistic vest carrier portion onto the sling, and wherein the split extends up between the arm openings to the neck opening. a mantle configured to extend from front to rear over shoulders of the wearer, at approximately waist level at front and rear and having a head/neck opening, front and back sides and left and right sides, with recesses in the left and right sides to define arm openings when the mantle is worn, the mantle having an outer fabric layer at front and back, and an inner liner attached to the outer fabric layer at sides, at shoulder areas and at the head/neck opening of the mantle, and an additional liner positioned between the outer fabric layer and the inner liner, secured to the inner liner so as to produce a sling with the inner liner to receive and support portions of the ballistic vest carrier at front and back, the outer fabric layer being detached from the inner liner at bottom edges of the front and back of the mantle, the sling being openable and closable at or near a bottom of the sling for insertion of the ballistic vest carrier portions; wherein the inner liner at both the front and back of the mantle is split along a vertical center line and along the bottom edge, and includes releasable attachment means along the bottom edge, such that for insertion of a portion of the ballistic vest carrier, the two sides of the liner can be pulled upwardly and outwardly for easy access to load the ballistic vest carrier portion onto the sling, and wherein the split extends up between the arm openings to the neck opening.
