Jan 20, 2026

US12529541 - Carry assist harness system

Image unavailable

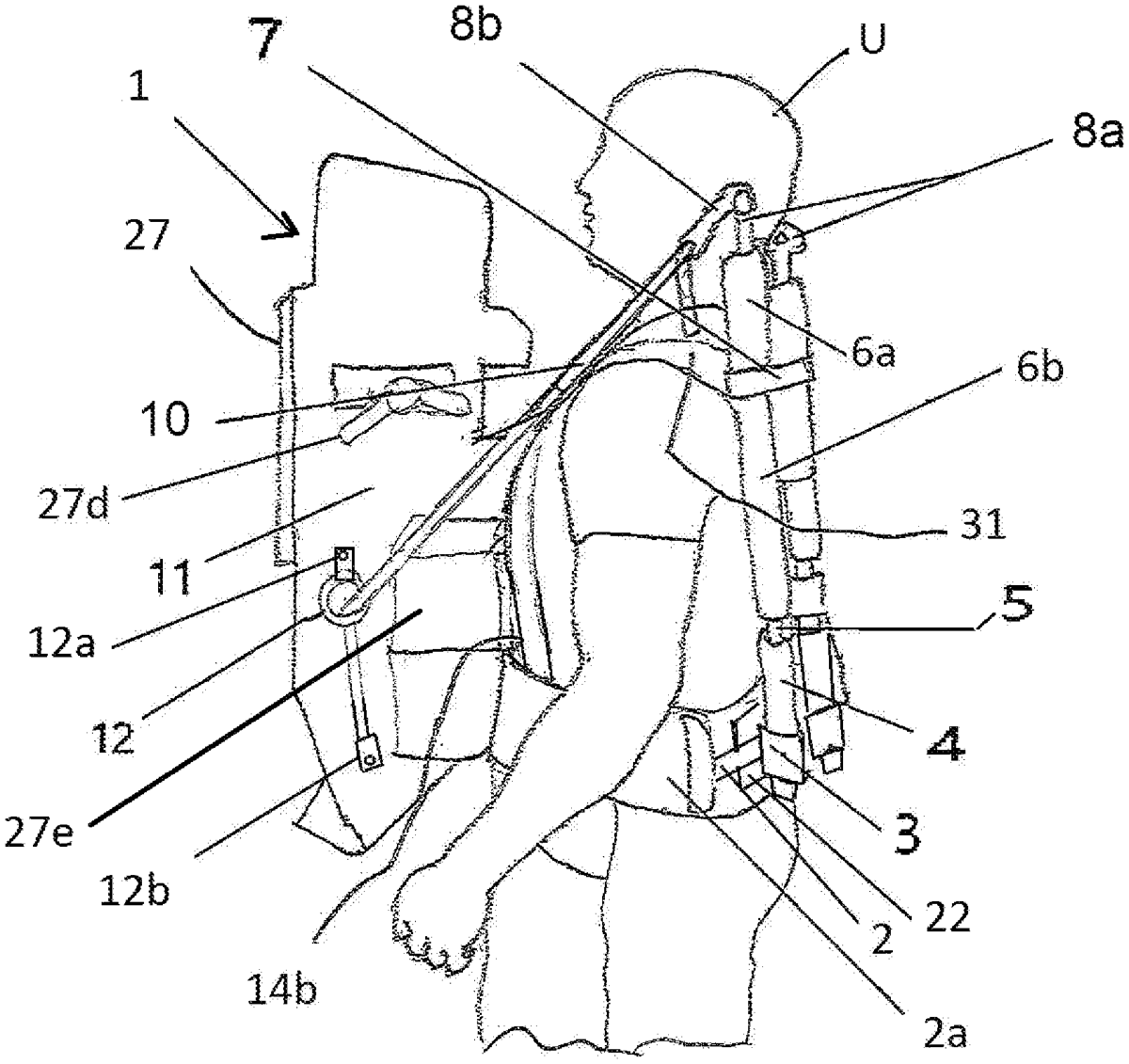

A carry harness system includes a support belt arranged to encircle a user's waist; a shoulder harness arranged to lay over the user's shoulders on opposite sides of the user's head; two front belt support straps arranged to be on a front side of the user and extending between the shoulder harness and the support belt; two rear belt support straps arranged to be on a rear side of the user and extending between the shoulder harness and the support belt; two post receivers supported on the support belt on the rear side; and two posts. The posts are arranged spaced-apart on the rear side, fit into the receivers and extending vertically between the post receivers and a vertical elevation above the shoulder harness. The two posts are fixed to the shoulder harness and have strap connections at tops of the posts. Two object support straps extend between the strap connections forwardly and obliquely to attachments on a rear side of the object to be carried.

Inventors: Daniel Spychalski

The carry assist harness system features a body-supported assembly with a belt and a vertically adjustable post that connects to an object support strap for carrying items. The design includes a receiver with a tube and removable pin to allow for customizable elevation settings of the post.

Claim 1

1 . A carry harness system, comprising: a body-supported harness assembly having a belt portion; a post arranged on a rear side of the body-supported harness assembly, supported from the body-supported harness assembly and extending vertically to a vertical elevation above the shoulder harness, the post fixed to the body-supported harness assembly and having a strap connection at a top of the post; an object support strap extending from the strap connection forwardly and obliquely to an attachment on a rear side of the object to be carried; and wherein the post fits into a receiver on the belt portion of the body-supported harness, the receiver comprises a tube having a pin removable from, and extendable into, a central channel of the tube, wherein the post includes an adapter that extends into the tube and includes vertically spaced-apart adjustment holes to adjust the vertical position of the post, wherein the adjustment holes are vertically positionable to align a select one adjustment hole to receive the pin to set an elevation of the post. a body-supported harness assembly having a belt portion; a post arranged on a rear side of the body-supported harness assembly, supported from the body-supported harness assembly and extending vertically to a vertical elevation above the shoulder harness, the post fixed to the body-supported harness assembly and having a strap connection at a top of the post; an object support strap extending from the strap connection forwardly and obliquely to an attachment on a rear side of the object to be carried; and wherein the post fits into a receiver on the belt portion of the body-supported harness, the receiver comprises a tube having a pin removable from, and extendable into, a central channel of the tube, wherein the post includes an adapter that extends into the tube and includes vertically spaced-apart adjustment holes to adjust the vertical position of the post, wherein the adjustment holes are vertically positionable to align a select one adjustment hole to receive the pin to set an elevation of the post.
