May 19, 2026
An explosive ordnance disposal (EOD) apparatus enables a human operator to deliver an EOD neutralization tool via an unmanned vehicle to a target attached to a ferrous or non-ferrous surface, position the tool to the target, fix the neutralization tool in place, and activate the neutralization tool, all remotely so that the human operator is not in danger. The unmanned vehicle disengages from the remainder of the EOD apparatus prior to neutralizing the target so that the unmanned vehicle is not damaged or destroyed. The EOD apparatus includes a flexible web interface that positions a tool holder ring containing the EOD neutralization tool onto the target before finally fixing the EOD neutralization tool into place against a ferrous or non-ferrous surface.
May 12, 2026
An inflatable down hole bag for insertion into a blast hole, comprising: a sealed inflatable body; a first substance within the sealed inflatable body; a plurality of tablets separated from the first substance within the sealed inflatable body; and a release for allowing the first substance to contact the tablets; wherein the tablets comprise a second substance, and wherein contact between the first substance and the second substance causes an inflation fluid producing reaction within the sealed inflatable body, thereby inflating the inflatable body, wherein the tablets are configured to fragment after contact with the first substance.
May 12, 2026
Disclosed is a method and system to provide protection for maritime vessels from multiple threat types including shoulder launched rocket propelled threats, ballistic (howitzer), and larger scale missile systems. According to an exemplary embodiment, the protection system is based on the ballistic launch (from the protected vessel) of an explosive charge(s) aimed ˜5 meters away from the vessel and ˜1 meter beneath the waterline followed by detonation to enable the formation of a water wall. Through the formation of a water wall, incident threats can be initiated (piezo fuze) and passivated through dynamic interaction with the water formation. In addition, the upward velocity of the water wall can enable an upwards rotation of the incident threat changing the orientation of the warhead jet formation (for shape charge warheads) above the vessel.
May 12, 2026
A hand-throwable effect-producing body with a manually graspable housing body, a manually operable triggering device having a spring-loaded impact body, an ignition device initiatable by the triggering device and comprises an ignition charge, a delay device is initiatable by the ignition device and comprises a delay charge and a delay line, and a main charge configured to be initiated directly or indirectly by the delay charge. The impact body is configured to be manually moved along the longitudinal axis thereof counter to a spring force into a preloaded position and to be releasably arrested there and to be released by manually operating a triggering element of the triggering device, such that it can shoot out of its preloaded position along the longitudinal axis against an axial stop and thereby initiate the ignition charge.
May 5, 2026
A transportable well completion tool is described. The transportable well completion tool comprises a housing with a charge module disposed within the housing. The charge module comprises explosive charges. An initiator module comprising a detonator is coupled to the housing, and a bulkhead member is disposed within the housing between the initiator module and the charge module. A containment cover is secured to the housing to cover the detonator. The transportable well completion tool can be transported with the containment cover in place, and the containment cover can be removed to connect the well completion tool to a tool string for downhole deployment.
May 5, 2026
Embodiments of the disclosure are directed to a shock initiation system for initiating shock in a shock tube for demolition. In some embodiments, the shock initiation system comprises a reusable discharge unit and a replaceable shock initiation platform. The reusable discharge unit may comprise a power source, a timer, a switch, and user inputs and may function to store a time, countdown the timer, and generate and transmit an electrical energy to the replaceable shock initiation platform. The shock initiation platform may receive the electrical energy from the discharge unit overpowering a resistor disposed on the shock initiation platform. The resistor may then detonate providing an initiation shock to a proximally disposed shock tube, thereby initiating shock in the shock tube.
May 5, 2026
The present invention concerns an explosive material charging device and a method of positioning the explosive material charging device in a borehole. The explosive material charging device comprises a top anchor unit and a bottom anchor unit each configured to engage the borehole wall, an expandable tube member arranged between the top anchor unit and the bottom anchor unit and configured to be charged with explosive material, the bottom anchor unit comprises a backflow prevention valve device configured to prevent the explosive material to flow out from the expandable tube member, wherein the backflow prevention valve device is openable for permitting a charging hose to enter the expandable tube member for reaching the interior of the top anchor unit.
Mar 24, 2026
A detonator for a perforating gun. The detonator is used to ignite a detonator cord in a charge tube for a perforating gun assembly, which in turn is used for perforating a wellbore. The detonator includes a cartridge. The cartridge comprises a tubular body having a first end; and a second end. Preferably, the tubular body is fabricated from a metallic material. The detonator also comprises a post proximate the first end of the tubular body. The post is configured to be in electrical communication with a first leg wire connected to an addressable switch. Alternatively, the post is in contact with the end of a detonation pin. The detonator also has a fuse head within the bore of the tubular body, and a fuse wire. The fuse head is in contact with the explosive charge material. The detonator is releasably snapped into a compartment located within the charge tube.
Mar 3, 2026
A warhead includes a casing having a periphery wall that extends along a central axis from a forward end of the casing to a rearward end of the casing. The casing defines a cavity configured to contain an explosive material, wherein the forward end of the casing includes a first thread pattern configured to engage a guidance system casing, and the rearward end of the casing includes a second thread pattern configured to engage a propulsion system casing. A first row of fragments is arranged along a first section of the periphery wall of the casing. A plurality of second rows of fragments is rearward of the first row of fragments and arranged along a second section of the periphery wall of the casing. In an example, each of the first and second sections tapers inward towards the central axis as it extends toward the forward end of the casing.
Feb 10, 2026
Device for interception of incoming ordnance, comprises a dispersion unit to disperse an explosive cloud in an expected path of the incoming ordnance, a proximity detector to detect proximity of the incoming ordnance in relation to the explosive cloud; and an ignition unit associated with said proximity detector that ignites the explosive cloud to disrupt the incoming ordnance.
Jan 27, 2026

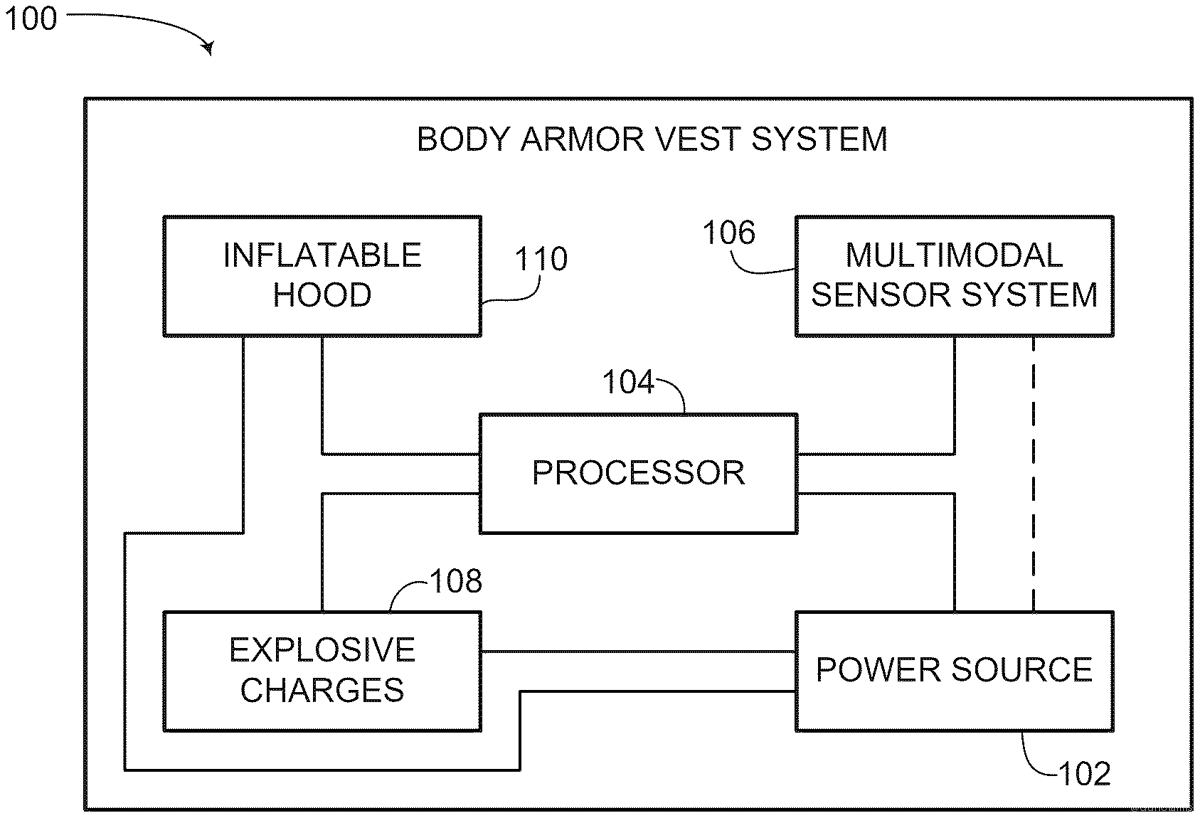

A body armor vest system including a wearable vest, a power source, a processor, at least one explosive charge, a multimodal sensor system and an inflatable protective hood, the power source, the processor and the explosive charge positioned on the wearable vest, the inflatable protective hood positioned on an upper portion of the wearable vest, the multimodal sensor system detecting the incoming projectile, the processor determining if the incoming projectile is a credible threat and deploying the inflatable protective hood and detonating the explosive charge if the detected incoming projectile is determined to be a credible threat.
Dec 30, 2025
In general, in one aspect, embodiments relate to a detonator assembly that includes a detonator housing that includes a detonating cord receptacle and a detonator receptacle, a detonator seated within the detonator receptacle, a detonating cord seated within the detonating cord receptacle side-by-side the detonator, and a grounding clip that extends lengthwise along a substantial portion of the detonator housing, where the grounding clip extends beyond an axial end of the detonator housing.
Jun 17, 2025
Flown munition that is rocket-propelled for hitting a target behind a barrier, and which comprises a rocket motor; and a successive payload that is mounted behind the rocket motor in a tandem configuration and is towed by it; and wherein the rocket motor is used for accelerating the munition towards the barrier and also serves as a sort of kinetic penetrator to clear a passage through the barrier for the successive pay load, which is connected to it and towed by it, and the successive payload (e.g.—a high-explosive charge) is adapted for delayed detonation following and just after said rocket motor hits the barrier.
Jun 17, 2025
A munition has an explosive charge with direction explosive characteristics, such as a nonuniform detonation velocities. The explosive charge may have multiple portions of explosives with nonuniform characteristics, and/or may have portions with graded nonuniform characteristics. The explosive charge may be used to propel a material from the munition in a desired manner. For example the material may be fragments that are part of a fragmentation munition. Alternatively the material may be a layer of a material, such as a metal, that produces an explosively formed penetrator or shaped charge. The explosive charge may be configured to control the spread and/or direction of the material to be propelled from the munition.
