Machinegun
Patents tagged Machinegun
Jul 28, 2026
A cylindrical machine gun ammunition carrier drum device with hand crank and spindle, which allows operator to regulate belt-fed ammunition at a proper cyclic rate of fire and reload linked ammunition in an efficient, accelerated manner. This retract and release belt-fed ammunition method would provide proper tension and uniformity to the linked rounds, preventing the weapon from malfunctioning and improve cyclic dispersion of ammunition. This method applies to all calibers of belt-fed personal and crew-served automatic weapons. The external hand crank and internal spindle would work in unison to recover the belt if it is yanked from the cylindrical drum container prematurely. A flexible warning device ribbon connected by ammunition links would ensure all rounds are expended from within the drum when abridged from spindle to belt. Additionally, this internal warning device can be linked between belts at operator's preference.
May 26, 2026
A recoil assembly for a rifle includes a barrel assembly, a bolt, bolt actuator, and a buffer assembly. The barrel assembly includes a barrel secured to a barrel extension. The barrel assembly is slidably received in the receiver and the barrel extension is coupled to a hydraulic buffer assembly located below the barrel extension. The hydraulic buffer assembly is configured and arranged to arrest rearward movement of the barrel assembly when the rifle is fired. An op-rod spring is coupled to an op rod extending that can be actuated by a gas piston assembly on the barrel. The op-rod spring is configured and arranged to arrest rearward movement of the bolt assembly.
May 6, 2025

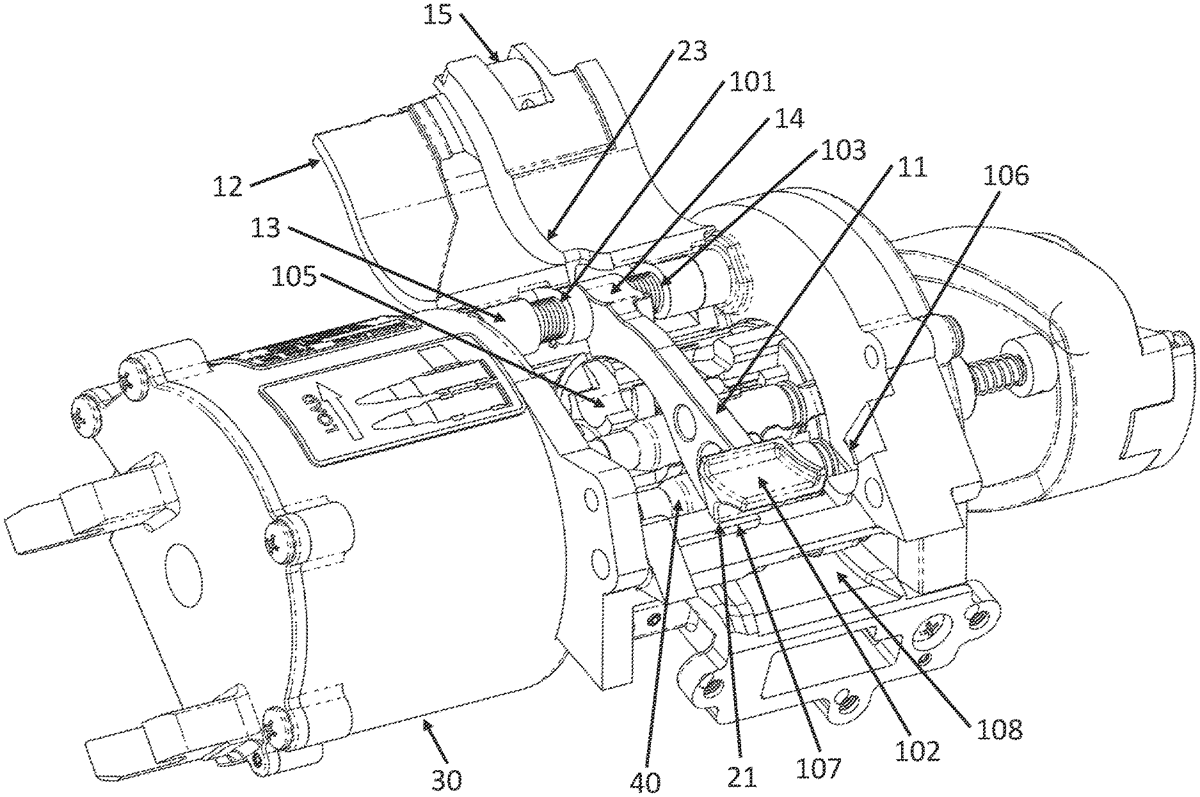

A feeder door of a feeder of a machine gun, the feeder including a feeder housing and the feeder door spring-loaded and pivotally coupled via a pivotal coupling to the feeder housing between at least an open position and a closed position, the feeder door comprising a base including a slot; a retainer lever; and a pivotal coupling independent of the feeder door and feeder housing pivotal coupling configured to spring-load and pivotally couple the retainer lever to the feeder housing between at least a stowed position with the retainer lever retracted in the slot of the base of the feeder door and a deployed position with the deployable portion extending outwardly from the slot of the base feeder door.
