Pyrotechnics
Patents tagged Pyrotechnics
Jul 7, 2026
An arrangement has an opto-pyrotechnic initiator, at least one laser, and an optical fibre, via which the laser radiation of the laser is guided to the opto-pyrotechnic initiator. Also disclosed is a method for improving the safety of such an opto-pyrotechnic initiator. At least one optical filter element having power-dependent or intensity-dependent transmission or reflection is arranged in the beam path of the laser radiation between the laser and the initiating impingement location of the laser radiation in the initiator. The filter element and the beam guidance for the laser radiation are selected such that for a laser power of the laser, that is intended to effect an initiation, the filter element has a higher transmission or reflection or can be switched to a higher transmission or reflection than for a lower laser power by application of an optical or electronic signal that is independent of the laser radiation.
Apr 28, 2026
Pyrotechnic devices and firing mechanisms for aircraft canopy jettison are disclosed herein. An example firing mechanism includes a housing defining a first bore, a second bore, and a channel between the first bore and the second bore, a primary charge disposed in the second bore, a closure disc between the second bore and the channel, and a firing pin assembly disposed in the first bore. The firing pin assembly includes a percussion primer and a firing pin piston including a piston body, a firing pin extending from the piston body, and a piercing pin extending from the piston body. In response to a firing signal, the firing pin piston is moved toward the primary charge such that the piercing pin punctures the closure disc and the firing pin engages the percussion primer to ignite the primary charge.
Mar 24, 2026

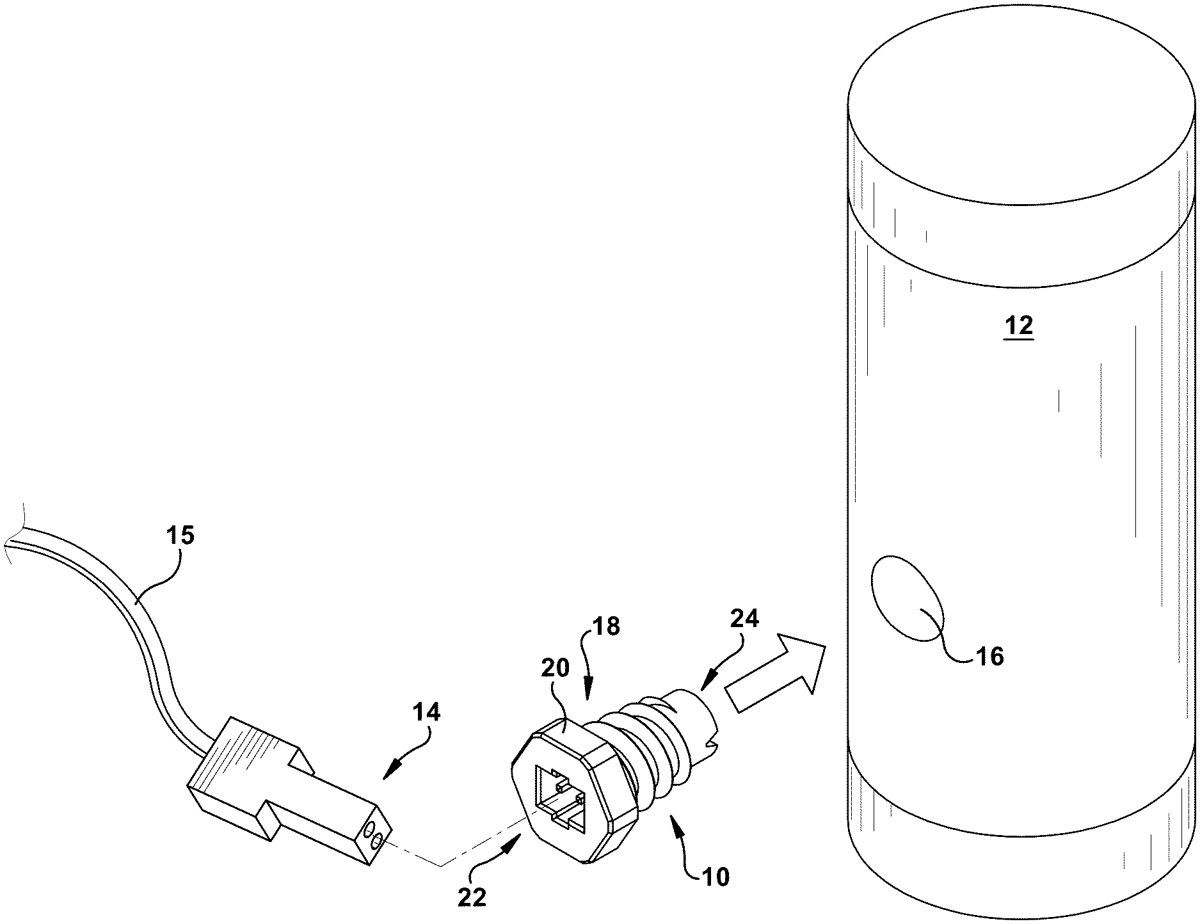

A fuse-less ignition system for fireworks. An ignitor module is provided that is insertable into a firework and includes: a first end having an interface adapted to reside on an exterior surface of the firework for receiving a plug; a set of electrical contacts adapted to receive electricity from the plug; a heat element coupled to the electrical contacts and adapted to heat in response to received electricity; and a cavity adjacent to the heat element containing a pyrotechnic material, the pyrotechnic material adapted to ignite in response to a heating of the heat element.
